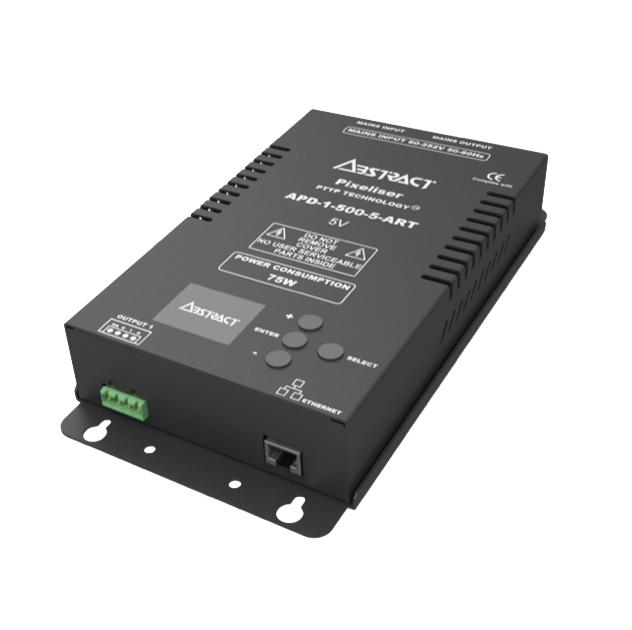

Addressable Pixel Strip Driver
APD 1-500
Capable of running 500 addressable pixel LEDs.
Ideal for a wide variety of application from home cinemas, to film and tv. This pixel driver is perfect for taking care of those special projects where up to 8 meters of 60 LED p/m addressable pixel LED strip needs powering and controlling. With Artnet & DMX on board, LEDIONs APD Drivers will cover all aspects of pixel control.
Product Code: APD-1-500
Compatible With: RGB/RGBW 5v, 12v & 24v Pixel Strips
Key Features
Power Balance Artnet Pixel Mapping Built-in User Programs Instant Light Shows Tuneable White RGBW Calibration
SPECIFICATION
LED Voltage 5V, 12V, 24V
LED Outputs 1
Output Current 5A Per Channel
Power Consumption 75W
Power Input Mains 100-240VAC
Channels Single Pix Control
Data & LED Connections 3/5 Pin XLR + RJ45
LED Connections 5 Pin Phoenix Connector
Operating Temp Range -10 to 30 °C
Compatible With RGB/RGBW Pixel LED Strip
Design the perfect driver for your project with our custom builder. Custom drivers tailored exactly to your specifications, ensuring it meets your unique performance, efficiency, and application requirements. Whether you're working on a small scale installation or a large commercial project, we make it simple to configure the right output, features, and protections you need, giving you complete control, flexibility, and confidence in your lighting system.
Frequently Asked Questions
Below you will find answers to the most common questions you may have on the APD 1-500. Also please feel free to Contact Us if you still can't find what you are looking for.
A product for every application
